Above 65% of new broadband deployments in urban U.S. projects now specify fiber-to-the-home. This rapid shift toward full-fiber networks shows the growing need for dependable production equipment.
SZ Stranding Line
Fiber Draw Tower
Fiber Coloring Machine
Shanghai Weiye Optic Fiber Communication Equipment Co (www.weiye-ofc.com) supplies automated FTTH cable production line systems for the United States market. Their turnkey FTTH Cable Production Line for High-Speed Fiber Optics brings together machines and control systems. It produces drop cables, indoor/outdoor cables, and high-density units for telecom, data centers, and LANs.
This modern FTTH cable making machinery delivers measurable business value. This system enables higher throughput and consistent optical performance featuring low attenuation. It also complies with IEC 60794 as well as ITU-T G.652D / G.657 standards. Customers gain reduced labor costs and material waste through automation. Full delivery services include installation as well as operator training.
The FTTH cable production line package features fiber draw tower integration, a fiber secondary coating line, and a fiber coloring machine. It also includes SZ stranding line, fiber ribbon line, compact fiber unit assembly, cable sheathing line, armoring modules, and testing stations. Control and power specs often rely on Siemens PLC with HMI, operating at 380 V AC ±10% and modular power consumption up to roughly 55 kW depending on configuration.
Shanghai Weiye’s customer support model includes on-site commissioning by experienced engineers, remote monitoring, and rapid troubleshooting. It also includes lifetime technical support and operator training. Clients are typically required to coordinate engineer logistics as part of standard supplier practice when ordering from FTTH cable machine suppliers.
Core Takeaways
- FTTH cable line solutions meet growing U.S. demand for fiber-to-the-home deployments.
- Turnkey systems from Shanghai Weiye combine automation, standards compliance, and operator training.
- Flexible modular systems use Siemens PLC + HMI and operate near 380 V AC with up to ~55 kW power profiles.
- Combined production modules cover drawing, coating, coloring, stranding, ribbone, sheathing, armoring, and testing.
- Advanced FTTH cable machinery reduces labor, waste, and improves optical consistency.
- Service coverage includes on-site commissioning, remote diagnostics, and lifetime technical assistance.
FTTH Cable Production Line Technology Explained
This fiber optic cable line output process for FTTH requires precise control at every stage. Manufacturers rely on integrated lines that combine drawing, coating, stranding, together with sheathing. That setup boosts yield as well as speeds up market entry. It meets the needs of both residential together with enterprise deployments in the United States.
Below, we outline the core components and technologies driving modern manufacturing. Each module must operate with precise timing and reliable feedback. The choice of equipment shapes product quality, cost, and flexibility for various cable designs.
Core Components In Modern Fiber Optic Cable Manufacturing
Secondary coating lines apply dual-layer coatings, often 250 µm, using high-speed UV curing. Tight buffering and extrusion systems provide 600–900 µm jackets for indoor and drop cables.

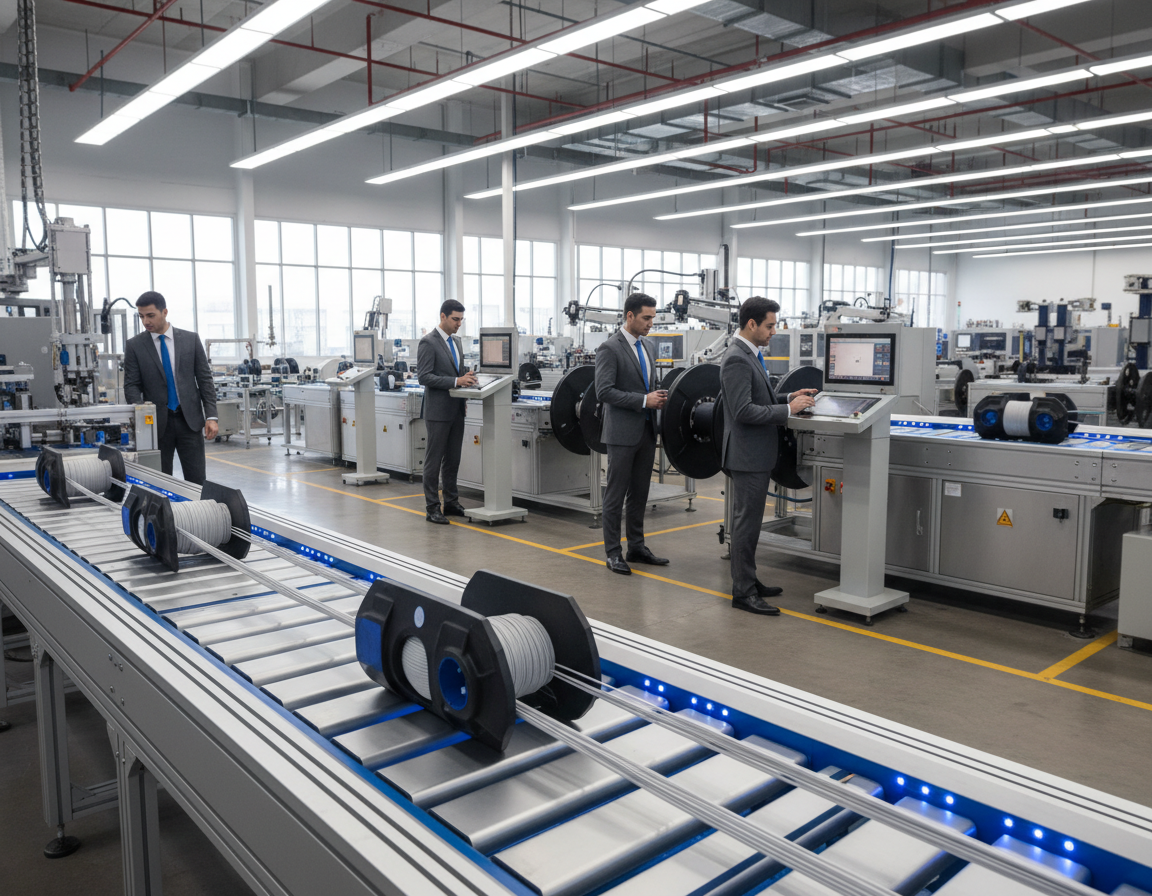

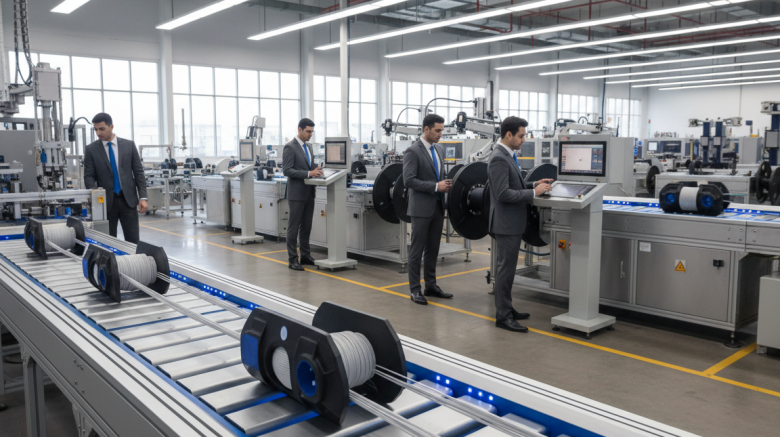

SZ stranding lines use servo-controlled pay-off as well as take-up units to handle up to 24 fibers featuring accurate lay length. Fiber coloring machines use multi-channel UV curing to mark fibers to industry color codes.
Sheathing and extrusion stations form PE, PVC, or LSZH jackets. Armoring units add steel tape or wire for outdoor protection. Cooling troughs and UV dryers stabilize profiles before testing.
Evolution From Traditional To Advanced Production Systems
Early plants used manual and semi-automatic modules. Lines were separate, with hand transfers and basic controls. Modern facilities now use PLC-controlled, synchronized systems with touchscreen HMIs.
Remote diagnostics and modular turnkey setups enable rapid changeover between simplex, duplex, ribbon, and armored formats. This shift supports automated fiber optic cable production and reduces labor dependence.
Technologies Driving Innovation In The Industry
High-precision tension control, based on servo pay-off and take-up, keeps geometry stable during high-speed runs. Multi-zone temperature control using Omron PID and precision heaters ensures consistent extrusion output quality.
High-speed UV curing and water cooling improve profile stabilization while reducing energy use. Integrated inline testers measure attenuation, geometry, tensile strength, crush resistance, and aging data.
| Operation | Typical Equipment | Advantage |
|---|---|---|
| Fiber drawing | Draw tower with automated tension feedback | Consistent core diameter and low attenuation |
| Secondary coating | UV-curing dual-layer coaters | Even 250 µm coating that improves durability |
| Identification coloring | Fiber coloring unit with multiple channels | Accurate identification for splicing and installation |
| Stranding | SZ line with servo control for up to 24 fibers | Stable lay length for ribbon and loose tube designs |
| Sheathing & extrusion | Efficient extruders with multi-zone heaters | PE, PVC, or LSZH jackets with tight dimensional control |
| Cable armoring | Armoring units for steel tape or wire | Improved outdoor mechanical protection |
| Profile cooling & curing | UV dryers and water troughs | Quicker profile setting with fewer defects |
| Inline testing | Real-time attenuation and geometry measurement | Live quality control and compliance reporting |
Compliance with IEC 60794 and ITU-T G.652D/G.657 variants is standard. Manufacturers typically certify to ISO 9001, CE, and RoHS. These credentials help support diverse applications, from FTTH drop cable production to armored outdoor runs and data center high-density solutions.
Choosing cutting-edge fiber optic line output equipment together with modern manufacturing equipment helps firms meet tight tolerances. Such equipment selection enables efficient automated fiber optic cable production and positions companies to deliver on scale together with output quality.
Essential Equipment In Fiber Secondary Coating Line Operations
This secondary coating stage is critical, giving drawn optical fiber its final diameter together with mechanical strength. The line prepares the fiber for stranding as well as cabling. A well-tuned fiber secondary coating line controls coating thickness, adhesion, together with surface quality. The line protects the glass during handling.
Producers aiming for high-yield, high-speed fiber optic cable production must match material, tension, and curing systems to process requirements.
High-speed secondary coating processes rely on synchronized pay-off, coating heads, and UV ovens. Modern systems achieve high production rates while minimizing excess loss. Precise tension control at pay-off and winder stages prevents microbends and ensures consistent coating thickness across long runs.
Single and dual layer coating applications serve different market needs. Single-layer setups provide basic mechanical protection and a simple optical fiber cable production machine footprint. Dual-layer lines combine a harder inner layer with a softer outer layer to improve microbend resistance and stripability. This is useful when fibers are prepared for connectorization.
Temperature control and curing systems are critical to final fiber performance. Multi-zone heaters and Omron PID controllers guide screw/barrel extruders to stable melt flow for LSZH or PVC compounds. UV curing ovens and water trough cooling stabilize the coating profile and reduce variation in excess loss; targets for high-quality single-mode fiber often aim for ≤0.2 dB/km at 1550 nm after extrusion.
Key components from trusted suppliers improve uptime as well as precision in an optical fiber cable line output machine. Extruders such as 50×25 models, screws together with barrels from Jinhu, together with bearings from NSK are common. Motors from Dongguan Motor, inverters by Shenzhen Inovance, as well as PLC/HMI platforms from Siemens or Omron deliver robust control together with monitoring for continuous runs.
Operational parameters support preventive maintenance and process tuning. Typical pay-off tension ranges from 0.4 to 1.5 N for fiber reels, while radiation and curing speeds are adjusted to material type and coating thickness. A preventive maintenance cycle around six months keeps secondary coating processes stable and supports reliable high-speed fiber optic cable production.
Fiber Draw Tower And Preform Processing
This fiber draw tower is the core of optical fiber drawing. This system softens a glass preform in a multi-zone furnace. Then, it pulls a continuous strand using precise diameter control. That stage sets the refractive-index profile as well as attenuation targets for downstream processes.
Process control on the tower uses real-time diameter feedback and tension management. This prevents microbends. Cooling zones and closed-loop systems keep geometry stable during the optical fiber cable production process. Modern towers log metrics for traceability and rapid troubleshooting.
Output quality supports single-mode fibers such as ITU-T G.652D and bend-insensitive types like G.657A1/A2 for FTTH networks. Draws routinely meet stringent loss figures. Excess loss after coating is kept at or below 0.2 dB/km for high-performance single-mode fiber.
Integration with secondary coating lines requires careful pay-off control. A synchronized handoff preserves alignment and tension as the fiber enters coating, coloring, or ribbon count stations. This connection ensures the optical fiber drawing step feeds smoothly into cable assembly.
Equipment vendors such as Shanghai Weiye offer turnkey options. These include testing stations for attenuation, tensile strength, together with geometric tolerances. Such capabilities help manufacturers scale toward fast-cycle fiber optic cable production while maintaining ISO-level output quality checks.
| Feature | Function | Typical Goal |
|---|---|---|
| Furnace with multiple zones | Even preform heating for stable glass viscosity | Stable draw speed and refractive profile |
| Live diameter control | Control core/cladding geometry while reducing attenuation | Tolerance ±0.5 μm |
| Tension and cooling management | Protect fiber strength while preventing microbends | Target tension based on fiber type |
| Integrated automated pay-off | Smooth transfer to coating and coloring | Matched feed rates to avoid slip |
| Inline test stations | Check attenuation, tensile strength, and geometry | Single-mode loss target of ≤0.2 dB/km after coating |
Advanced SZ Stranding Line Technology In Cable Assembly
The SZ stranding method creates alternating-direction lays that cut axial stiffness and boost flexibility. As a result, it is ideal for drop cables, building drop assemblies, and any application that needs a flexible core. Manufacturers moving toward automated fiber optic cable manufacturing use SZ approaches to meet tight bend and axial tolerance specs.
Precision in the stranding stage protects optical performance. Current precision stranding equipment employs servo-driven carriers, rotors, and modular pay-off racks that accept up to 24 fibers. These systems deliver precise lay-length control and allow quick reconfiguration for different cable types.
Automated tension control systems keep fibers within safe limits from pay-off to take-up. Servo pay-offs, capstans, and haul-off units maintain constant linear speed and target tensions. Typical fiber pay-off tension ranges from 0.4 to 1.5 N while reinforcement pay-offs run between 5 and 20 N.
Integration with a downstream fiber cable sheathing line streamlines production and reduces handling. Extrusion of PE, PVC, or LSZH jackets at 60–150 m/min syncs with stranding through a Siemens PLC. Cooling troughs and UV dryers stabilize the jacket profile right after extrusion to prevent ovality and reduce mechanical stress.
Optional reinforcement and armoring modules add strength without compromising flexibility. Reinforcement pay-off racks accept steel wires or FRP rods. Armoring units wrap steel tape or wire featuring adjustable tension to meet specific mechanical ratings.
Built-in quality control prevents defects before cables leave the line. In-line geometry checks, fiber strain monitors, and optical attenuation measurement detect excess loss or mechanical strain caused by stranding or sheathing. These checks support continuous automated fiber optic cable manufacturing workflows and cut rework.
The combination of a robust sz stranding line, high-end precision stranding equipment, and a synchronized fiber cable sheathing line provides a scalable solution for manufacturers. This combination raises throughput while protecting optical integrity and mechanical performance in finished cables.
Fiber Coloring Machines And Identification Systems
Coloring and identification are critical in fiber optic cable production. Accurate color application minimizes splicing errors and accelerates field work. Advanced equipment combines fast coloring with inline inspection, ensuring high throughput and low defect rates.
Today’s high-speed coloring technology supports multiple channels as well as quick curing. Machines can operate 8 to 12 color channels simultaneously, aligning with secondary coating lines. UV curing at speeds over 1500 m/min helps ensure color and adhesion stability for both ribbon and counted fibers.
The next sections review standards and coding prevalent in telecom networks.
Color coding adheres to international telecom standards for 12-color cycles and ribbon schemes. Such compliance aids technicians in installation and troubleshooting. Consistent coding significantly reduces field faults and accelerates network deployment.
Quality control integrates high-spec fiber identification systems into line output lines. In-line cameras, spectrometers, together with sensors detect color discrepancies, poor saturation, as well as coating flaws. This PLC/HMI interface alerts to issues as well as can pause the line for correction, safeguarding downstream processes.
Machine specifications are vital for uninterrupted runs and material compatibility. Leading equipment accepts UV-curable pigments and inks, compatible with common coatings and extrusion steps. Pay-off reels accommodating 25 km or 50 km spools ensure continuous operation on high-volume lines.
Supplier support is essential for US manufacturers adopting these technologies. Shanghai Weiye and other established vendors offer customizable channels, remote diagnostics, and onsite training. This support reduces ramp-up time and enhances the reliability of fiber optic cable production equipment.
Specialized Solutions For Fiber In Metal Tube Production
Metal tube and metal-armored cable assemblies provide robust protection for fiber lines. They are ideal for direct-buried and industrial applications. The controlled routing of coated fibers into metal tubes prevents microbends, ensuring optical performance remains within specifications.
Processes depend on precision filling and centering units. These modules, in conjunction featuring fiber optic cable manufacturing equipment, ensure concentric placement as well as controlled tension during insertion.
Armoring steps involve the use of steel tape or wire units with adjustable tension and wrapping geometry. That approach benefits armored fiber cable production by preventing compression of fiber elements. It also keeps reinforcement wires at typical diameters of ø0.4–ø1.0 mm.
Coupling armoring with downstream sheathing and extrusion lines results in a finished outer jacket made of PE, PVC, or LSZH. An optical fiber cable production machine must handle pay-off reels sized for reinforcement and align with sheathing tolerances.
Quality checks include crush, tensile, and aging tests to confirm the armor does not exceed allowable stress on fibers. Standards-based testing ensures long-term reliability in field conditions.
Turnkey solutions from established manufacturers integrate metal tube handling using SZ stranding as well as sheathing lines. These solutions include operator training together with maintenance schedules to sustain throughput on fiber optic cable manufacturing equipment.
Buyers should consider compatibility with armored fiber cable production modules, ease of changeover, and service support for field upgrades. These factors reduce downtime and protect investment in an optical fiber cable production machine.
Fiber Ribbon Line And Compact Fiber Unit Production
Modern data networks require efficient assemblies that pack more fibers into less space. Manufacturers employ a fiber ribbon line to create flat ribbon assemblies for rapid splicing. This method uses parallel processes and precise geometry to meet the needs of MPO trunking and backbone cabling.
Advanced equipment ensures accuracy and speed in production. A fiber ribbone line typically integrates automated alignment, epoxy bonding, precise curing, and shear/stacking modules. In-line attenuation as well as geometry testing reduce rework, maintaining high yields.
Compact fiber unit production focuses on tight tolerances together with material choice. Extrusion together with buffering create compact fiber unit constructions featuring typical tube diameters from 1.2 to 6.0 mm. Common materials include PBT, PP, together with LSZH for durability together with flame performance.
High-density cable solutions aim to enhance rack and tray efficiency in data centers. By increasing fiber count per unit area, these designs shrink cable diameter and simplify routing. They are compatible using MPO trunking and high-count backbone systems.
Production controls and speeds are critical for throughput. Modern lines can reach up to 800 m/min, depending on configuration. PLC and HMI touch-screen control enable quick parameter changes and synchronization across multiple lines.
Quality and customization remain key differentiators for manufacturers like Shanghai Weiye. Electronic monitoring, customizable ribbon counts, stacking patterns, and turnkey integration with sheathing and testing stations support bespoke high-output fiber cable manufacturing line requirements.
| Key Feature | Fiber Ribbon System | Compact Fiber System | Data Center Benefit |
|---|---|---|---|
| Line speed | As high as 800 m/min | Up to 600–800 m/min | Greater throughput for large-scale deployments |
| Main production steps | Automated alignment, epoxy bonding, curing | Extrusion, buffering, and tight-tolerance winding | Stable geometry and reduced insertion loss |
| Materials | Specialized tapes and bonding resins | PBT, PP, plus LSZH buffer and jacket materials | Durable performance and safety compliance |
| Quality testing | In-line attenuation and geometry checks | Precision dimensional control with tension monitoring | Lower failure rates and faster rollout |
| System integration | Sheathing integration and splice-ready stacking | Modular units for high-density cable solutions | More efficient MPO trunk and backbone deployment |
Optimizing High-Speed Internet Cable Production
Efficient high-speed fiber optic cable manufacturing relies on precise line setup and strict process control. To meet US market demands, manufacturers must adjust pay-off reels, extrusion dies, as well as tension systems. This supports optimal output for flat, round, simplex, together with duplex FTTH profiles.
FTTH Application Cabling Systems
FTTH cabling systems must accommodate various drop cable types while maintaining consistent center heights, like 1000 mm. Production lines for FTTH include 2- and 4-reel pay-off options. They also feature reinforcement pay-off heads for enhanced strength.
Extruder models, such as a 50×25, control jacket speeds between 100 and 150 m/min, depending on LSZH or PVC. Extrusion dies for 2.0×3.0 mm profiles guarantee reliable jackets for field installation.
Quality Assurance In Fiber Pulling Process
Servo-controlled pay-off and take-up units regulate fiber tension between 0.4–1.5 N to prevent excess loss. Inline systems conduct fiber pull testing, attenuation checks, mechanical tensile tests, and crush and aging cycles. These tests verify performance.
Key control components include Siemens PLCs together with Omron PID controllers. Motors from Dongguan Motor together with inverters from Shenzhen Inovance ensure stable operation together with easier maintenance.
Meeting Industry Standards For Optical Fiber Drawing
A well-tuned fiber draw tower produces fibers that meet ITU-T G.652D and G.657 standards. The goal is to achieve ≤0.2 dB/km excess loss at 1550 nm for high-quality single-mode fiber.
Choosing the best equipment for FTTH cables involves evaluating speed, customization, warranty, and local after-sales support. Top FTTH cable production line manufacturers provide turnkey layouts, remote monitoring, and operator training. That reduces ramp-up time for US customers.
Final Thoughts
Advanced FTTH cable making machinery integrates various components. These include fiber draw towers, secondary coating, coloring lines, SZ stranding, and ribbon units. It also includes sheathing, armoring, and automated testing for consistent high-speed fiber production. A complete fiber optic cable production line is designed for FTTH and data center markets. It enhances throughput, keeps losses low, and maintains tight tolerances.
For United States manufacturers together with system integrators, partnering featuring reputable suppliers is key. They should offer turnkey systems featuring Siemens or Omron-based controls. This includes on-site commissioning, remote diagnostics, together with lifetime technical support. Companies like Shanghai Weiye Optic Fiber Communication Equipment Co deliver integrated solutions. Such solutions simplify automated fiber optic cable manufacturing together with reduce time to line output.
Technically, ensure line configurations adhere to IEC 60794 and ITU-T G.652D/G.657 standards. Verify tension and curing settings to meet excess loss targets, such as ≤0.2 dB/km at 1550 nm. Adopt preventive maintenance cycles of roughly six months for reliable 24/7 operation. When planning a new FTTH cable production line, first evaluate required cable types. Collect product drawings and standards, request detailed equipment specs and turnkey proposals, and schedule engineer commissioning and operator training.
